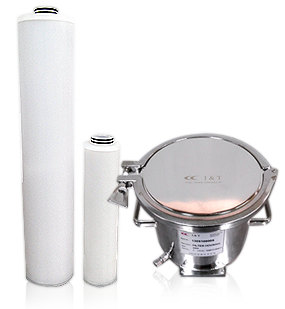

이오닉스(DI 필터) |
| |
| |
 |
이오닉스는 반도체 분야에 최적화된
이온교환
필터 (DI 필터,
레진 필터)입니다. |
| |
|
|
아이엔티코리아의 설계 노하우와 제조력으로
귀사의
장비에 최적화된 이온교환필터의
공급이
가능합니다. |
|
|
|
|
| |
|
Product Information |
 |

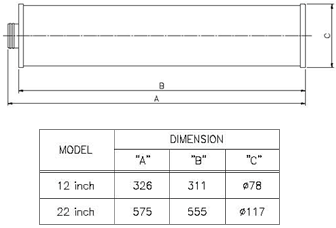

| Specification |
12 inch |
22 inch |
| Length |
mm |
326 |
575 |
| Outdiameter |
mm |
78 |
117 |
| Material |
| Outcage & EndCap |
|
Polypropylene |
Polypropylene |
| Seal |
|
EPDM |
EPDM |
| Resin Bag |
|
Polyethylene |
Polyethylene |
|
|
| |
| Ion Exchange Resin Specification |
OH- form |
H+ form |
| Total exchange capacity, min. |
eq/I |
1.2 |
1.8 |
| Total exchange capacity, min. |
kgf/ft³ as CaCO3 |
26.2 |
39.3 |
| Water retension capacity |
% |
60 max. |
50~56 |
| Partice size distribution |
| 0.3 - 1.2 mm, min. |
% |
90 |
90 |
| Conversion (OH), min. |
% |
90 |
- |
| CI, max. |
% |
1 |
- |
|
| |
| Operating Condition |
| Max. Temp. |
℃ |
80 |
|
| Max. Pressure |
bar |
8 |
|
|
| |
| Ordering Information |
| Part no. |
13 |
051 |
12 |
002 |
12 inch |
| |
13 |
051 |
22 |
001 |
22 inch |
|
| |
|
Composition on lngredients |
| Component |
Material |
Content (weight percent) |
| Active ingredients |
| Anion Exchange Polymer |
|
<55 |
| Cation Exchange Polymer |
|
<45 |
| Structure Components |
| Shell & Head |
Polypropylene |
>90 |
| Screen |
Polyethylene |
<8 |
| Resin Bag |
Polyethylene |
<1 |
| O-Ring |
EPDM |
<1 |
|
| |
|
Compositon on Ion Exchange Resin |
| Component |
CAS No. |
Content (weight percent) |
Sulfonated polymer of styrene, ethylstyrene and
divinylbenzene in the hydrogen form |
69011-20-7 |
>=15 ~ <=30 |
Trimethylamine functionalised copolymer of styrene
and divinylbenzene in the hydroxide form |
69011-18-3 |
>=15 ~ <=30 |
| Water |
7732-18-5 |
>=40 ~ <=70 |
|
|
