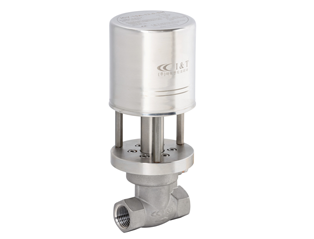

ICV-10A(고온용) 시리즈 |
| |
| |
 |
창조적이고 혁신적인 기술로 개발된 세계 최고 품질의
컨트롤밸브입니다. |
|
유량의 미세 정밀 제어가 가능한 니들타입
컨트롤밸브
입니다. |
|
고온(200℃)의 유체에 사용이 가능한 컨트롤밸브입니다. |
|
| |
|
|
|
| |
|

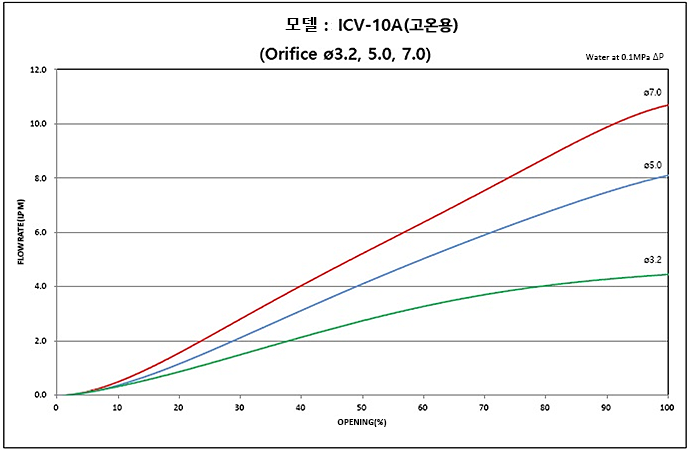

Performance Curve |
 |
|
| |
|

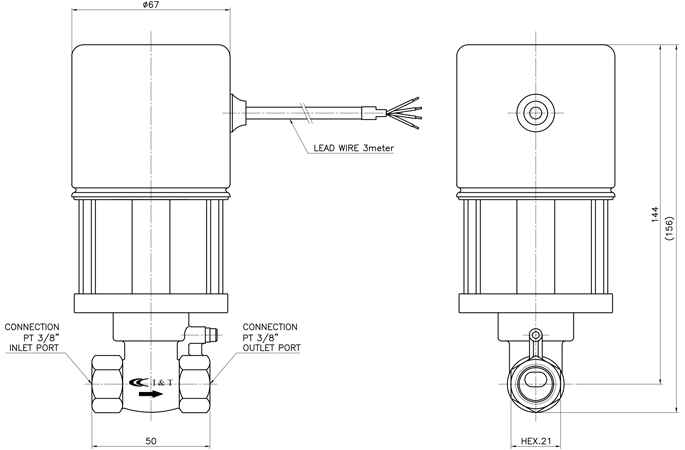

Dimension |
 |
|
| |
|
Specifications |
| Model |
ICV-10A-3.2-SH |
ICV-10A-5.0-SH |
ICV-10A-7.0-SH |
| Orifice Diameter |
Ø3.2 |
Ø5.0 |
Ø7.0 |
| Flow Limit (Water at 0.4 Mpa Δp) |
8.8 LPM |
16.2 LPM |
21.4 LPM |
| 2.3 GPM |
4.3 GPM |
5.7 GPM |
| Maximun Cv value |
0.31 |
0.57 |
0.75 |
| Valve type |
Needle valve |
| Connection size |
PT 3/8" |
| Flow path |
180° Flow |
| Fluid types |
Water, Galden®, FluorinertTM, Air, Gas |
| Fluid Temperature |
-20 ~ 200℃ |
| Ambient Environment |
-20 ~ 50℃ |
| Maximum Operation Pressure Differential(MOPD) |
1.0 Mpa |
| Maximum Operating Pressure |
1.5 Mpa |
| Power Source |
24 VDC |
| Motor Power |
24 VDC |
| Motor Rated Current |
0.4 A |
| Input Signal |
4~20 mA / 0~10 VDC |
| Valve Driver Board |
HDC Series |
| Drive System |
DC stepper motor |
| Resolution of Valve Movement |
1,000 steps |
| Response Time (0 to 100% Open) |
3 seconds |
| Water and Dust Proofing |
IP65 |
| Material |
304 Stainless Steel, PTFE, FKM |
| Weight |
1,160g |
1,162g |
1,1649g |
|
|
|
|
